Explosion-proof fire alarm transmitter is a widely used fire alarm device in hazardous environments. It is designed to operate safely in flammable and explosive areas, and is equipped with explosion-proof features. It can detect smoke and temperature changes caused by fire and promptly emit an alarm signal, ensuring timely and accurate fire detection.

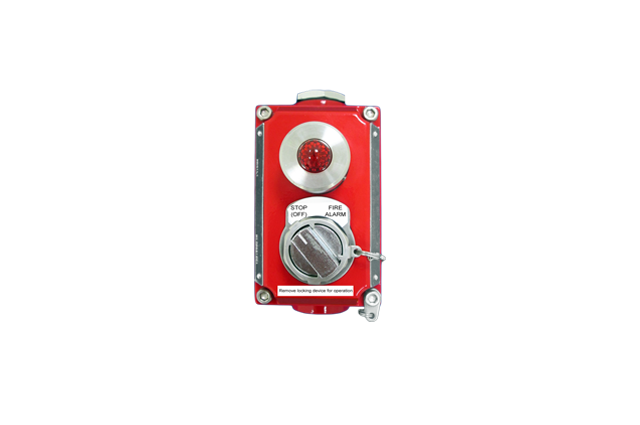

Explosion-proof Fire Alarm Call Point
Model:KDS1L1
Characteristics
Explosion-proof, outdoor type, with locking device and indicator light
Aluminum alloy enclosure, red powder coated, corrosion-resistant, impact-resistant
Stainless steel components
2-position selector switch; contact: NC (STOP(OFF)) x 1 / NO (FIRE ALARM) x 1
Voltage / Current: 24 Vdc / 12.2 mA
Indicator light; voltage: 24 Vdc ; current: 12.2 mA
Cable entry: 1″ NPT x 1 or 3/4″ NPT x 1
CNS certified, Ex d IIB+H2 T6 Gb / Ex tb IIIC T85℃ Db
