Industrial Desktop Handset Station
(W / Merge / Isolate Control)
Model:K35DDM

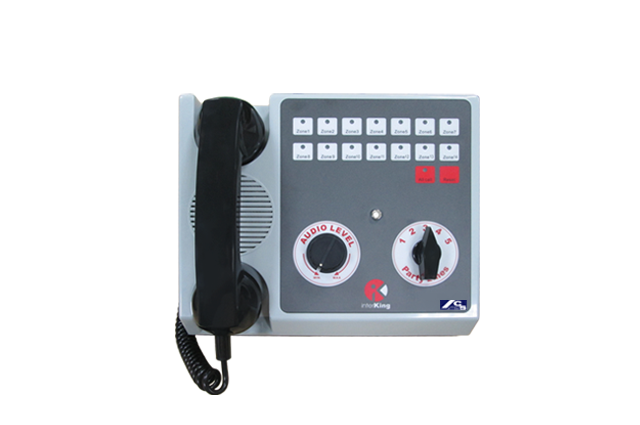

K35DDM

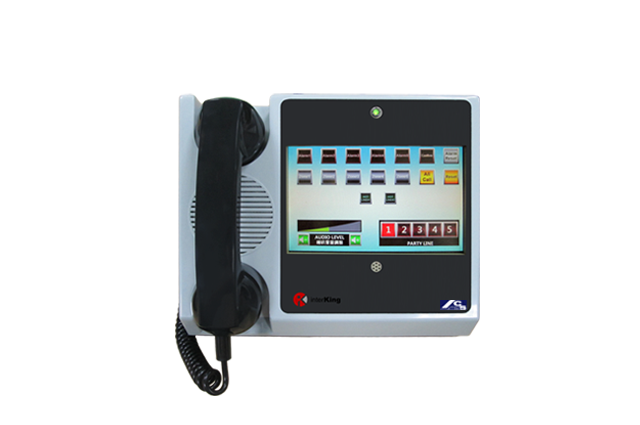

K3TDDM
-
Characteristics
- Steel panel and ABS enclosure, IP54 rated
- Galvanized steel amplifier enclosure, powder coated, corrosion-resistant, impact-resistant
- Special design for control room or office, merge/isolate control function
- 20 watt amplifier
- Five party lines for intercommunication
- Dual color LED light for power-on and off-hook
- Built-in speaker and adjustable volume control
- Overload protection with current limiting and thermal shutdown circuits
- Modular PCB
- Fuse protection for power supply and speaker amplifier
- Surge protection for power supply
- Hook with magnetic reed switch
- Dynamic microphone for noise cancelling and feedback preventing
- Available for 110VAC or 220VAC
- Adjustable speaker volume from the front panel
- Mute setting of speaker
- With power supply and speaker amplifier
- Address setting, automatically adjusting speaker volume by measuring ambient noise
- Two DI & DO for control
- Pre-broadcast tone and self-detection sound of speaker
- Cable entry holes - Ø50x2 (suitable for 1 1/2″) or Ø35x2 (suitable for 1″), Ø28x1 (suitable for 3/4″)
- K35DDM - Desktop Five Party Handset Station (W/ Merge/Isolate 5 Loop Control, 2-wire)
- K35DDM-M7 - Desktop Five Party Handset Station (W/ Merge/Isolate 7 Loop Control, 2-wire)
- K35DDM-M14- Desktop Five Party Handset Station (W/ Merge/Isolate 14 Loop Control, 2-wire)
- K3TDDM - Desktop Five Party Handset Station (Touchscreen W/ Merge/Isolate 5~14 Loop Control, 2-wire)
